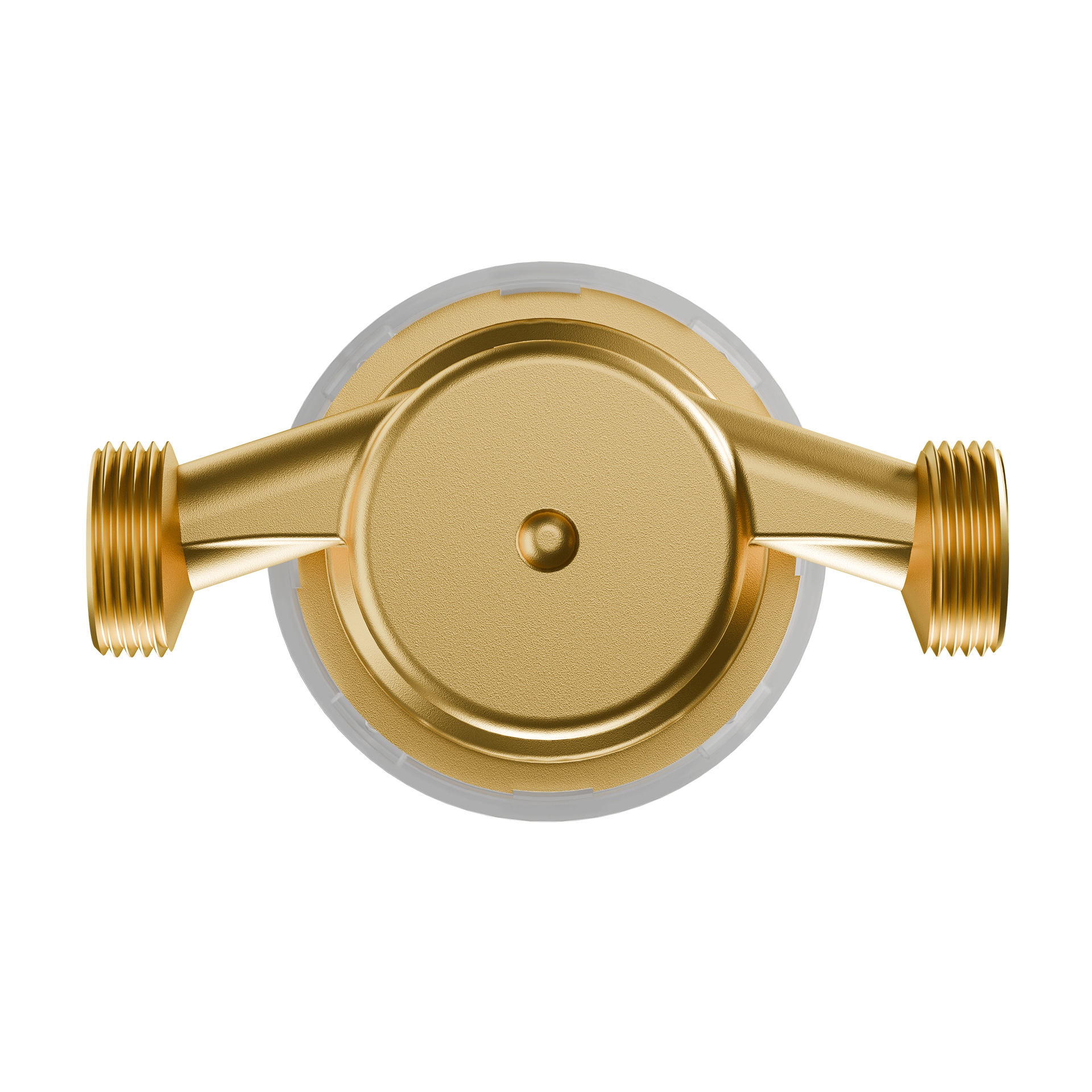

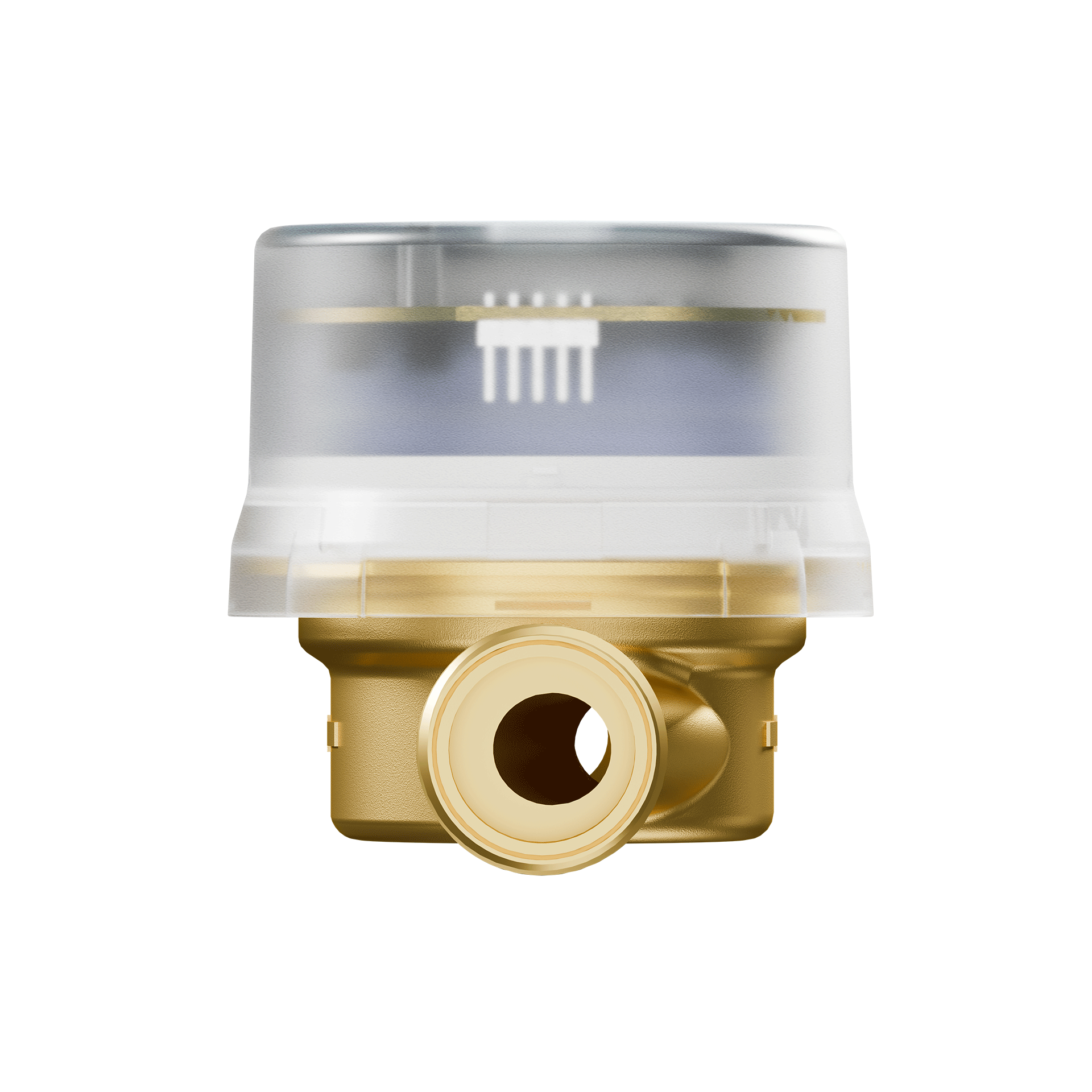

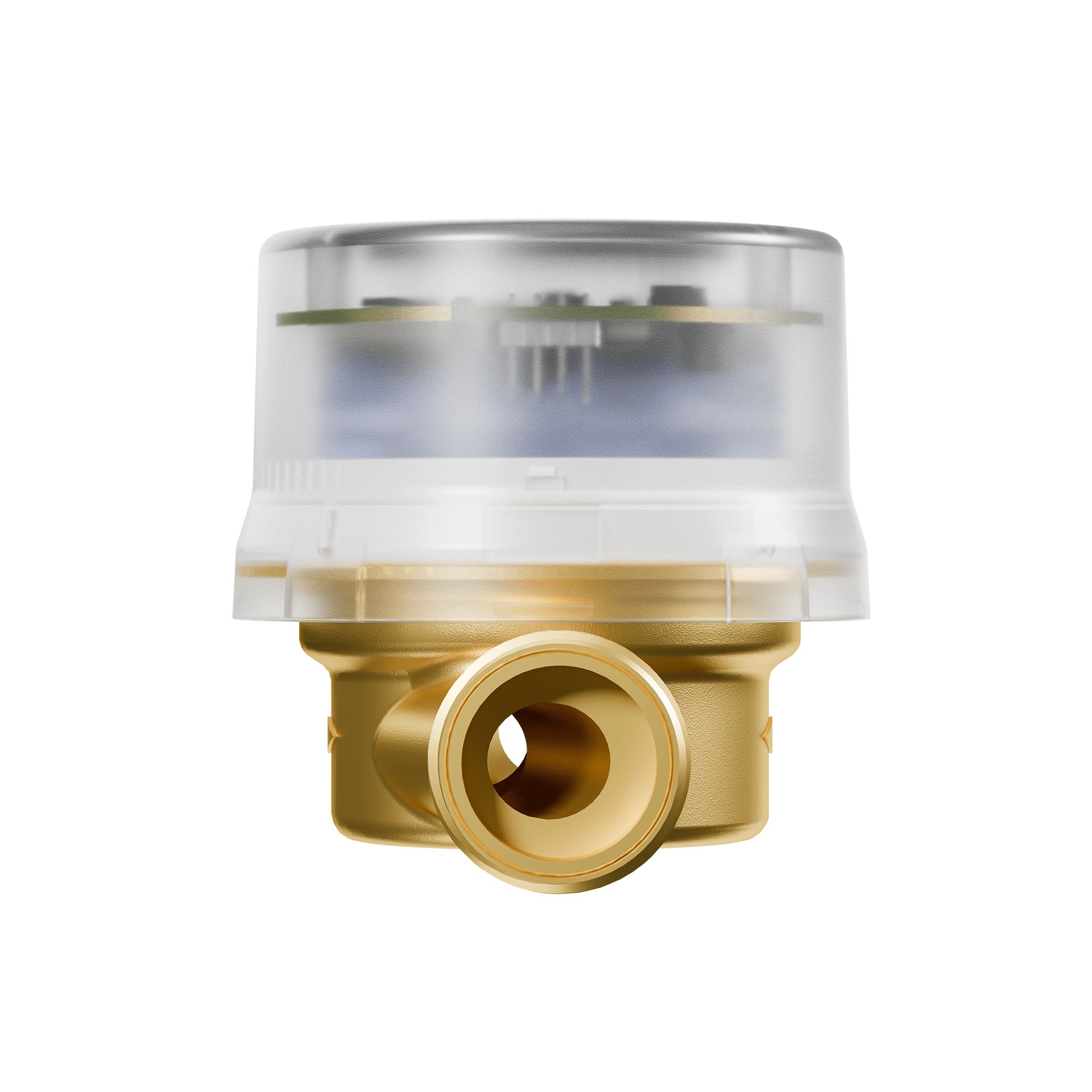

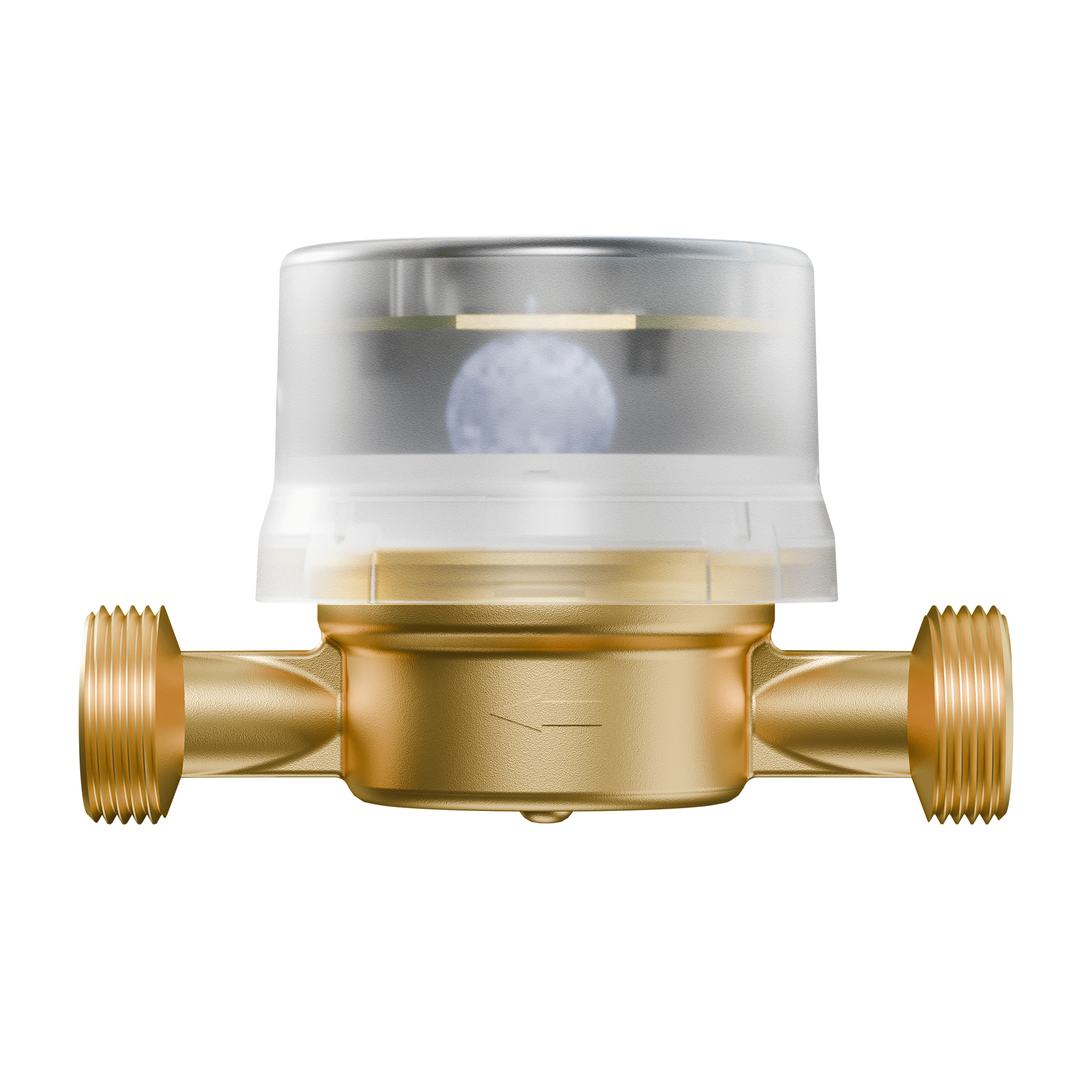

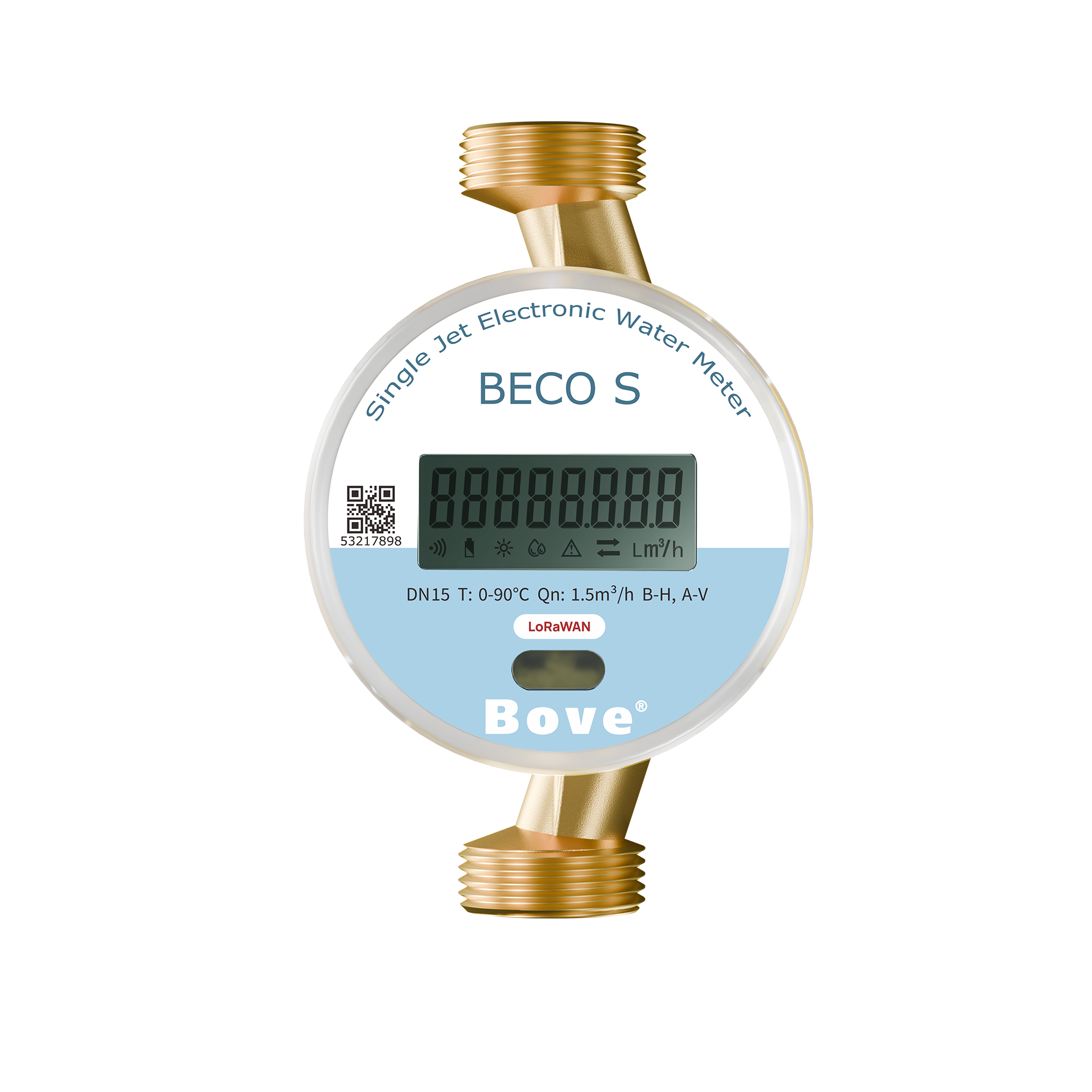

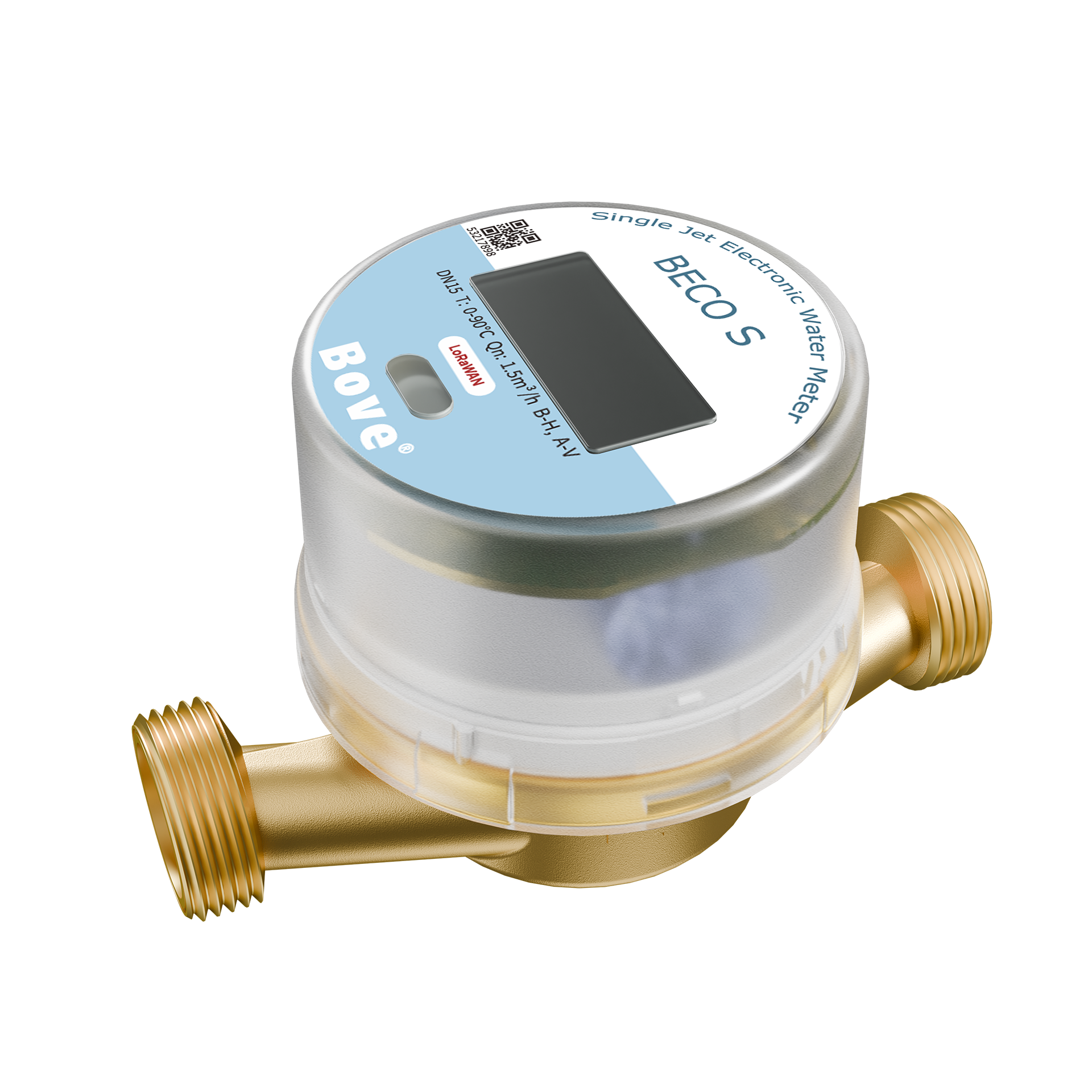

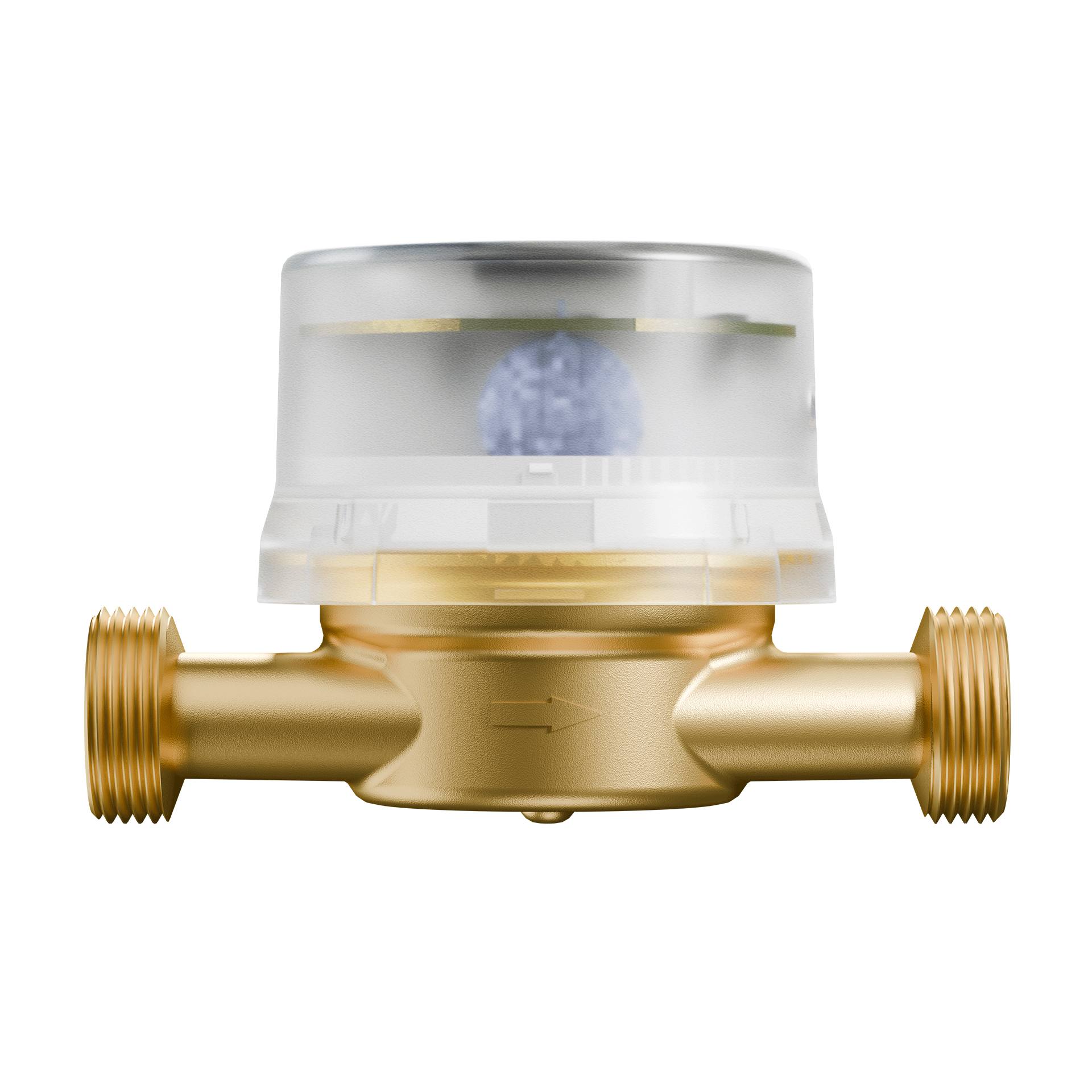

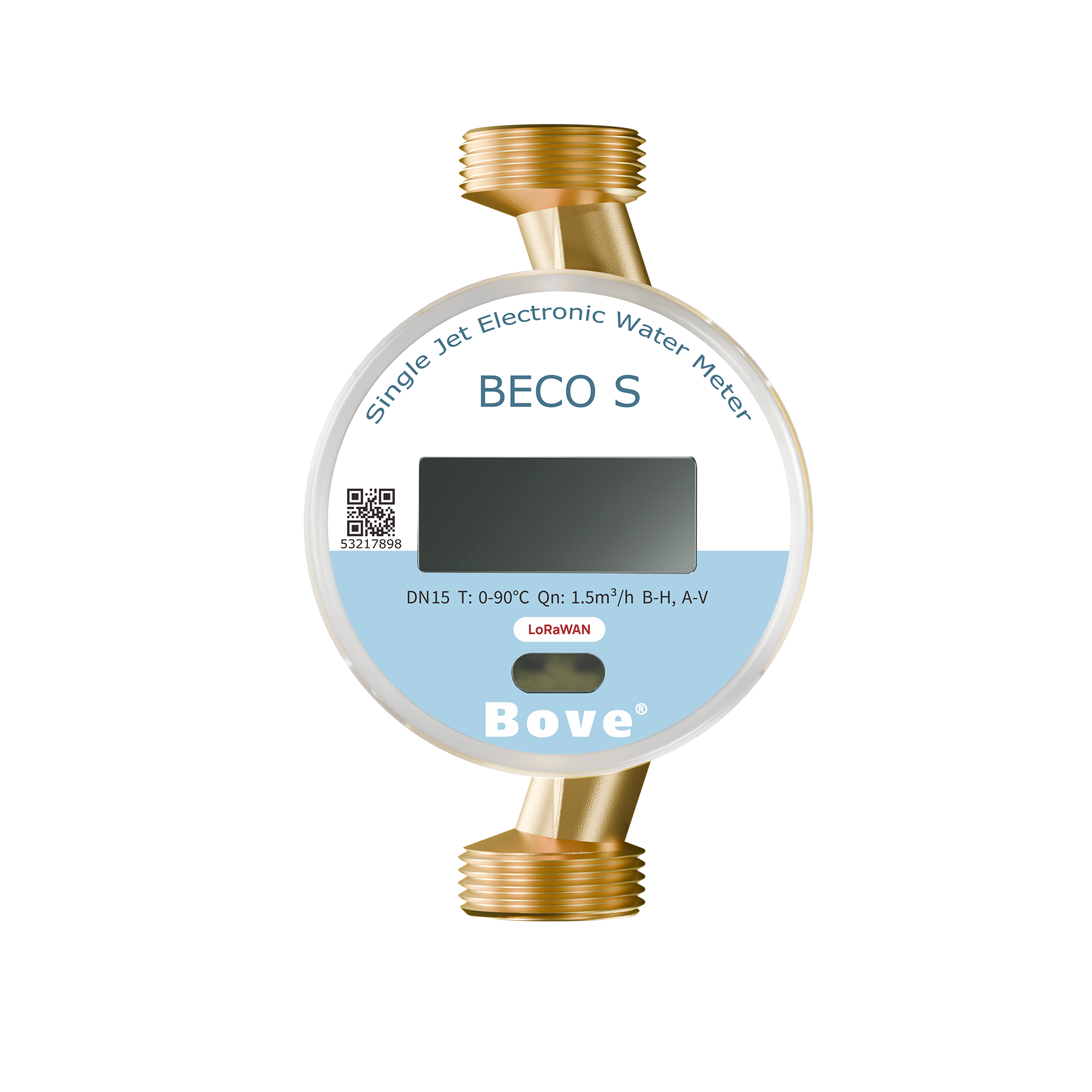

BECO S Single-Jet Electronic Water Meter
Electronic single-jet mechanical meter with compact & miniaturized design, perfectly matched for cost-effective economical solutions. Multiple IoT communication options are available to realize intelligent data transmission.
Product Details
Specifications
| Type | BECOL S | ||||||
| Nominal Diameter, DN (mm) | 15 | 20 | |||||
| Installation Position | Horizontal | Vertical | Horizontal | Vertical | |||
| Metrological Class | B | A | B | A | |||
| Flow Rate (m³/h) | |||||||
| Minimum (Qmin) | 0.03 | 0.06 | 0.05 | 0.1 | |||
| Transitional (Qt) | 0.12 | 0.15 | 0.2 | 0.25 | |||
| Nominal (Qn) | 1.5 | 2.5 | |||||
| Maximum (Qmax) | 3 | 5 | |||||
| Sensitivity Threshold | 0.015 | 0.03 | 0.025 | 0.05 | |||
| Maximum permissible error | Qmin~Qt : 5% Qt~Qmax: 2% | ||||||
| Pressure Loss (kPa) | 63kPa | ||||||
| Temperature Range (℃) | 5 ~ 90℃ | ||||||
| Max. Working Pressure (MPa) | 1MPa | ||||||
| Warranty Period (Years) | 6 years | ||||||
| Installation requirements | U10D5 | ||||||
| Connection | G¾” | G1” | |||||
| Collection method | Magnetic | ||||||
| LCD Switch | Magnetic | ||||||
| LCD Resolution | 0.001m³ | ||||||
| LCD Capacity | 99999.999m³ | ||||||
| Memory | The meters has non-volatile memory. The archive depth is upto 60 monthly, up to 184 daily, and up to 1488 hourly records. | ||||||
| Communication | M-Bus/ RS-485/ LoRaWAN | ||||||
| Waterproof Rating (IP class) | IP54 | ||||||
| Communication Cable Length | 1m | ||||||
| Reverse Flow Measurement | Yes | 130 | |||||
| Pipe Length | 110 | ||||||
| RS-485 | RS-485 external power supply voltage, 7 ~ 24V | ||||||
| Screen always on | |||||||
| M-Bus | Screen always on | ||||||
| Data Exchange Rate/ Stop Bits/Parity/ Bits | RS-485: 9600/ 1/ None/ 8M-Bus: 2400/ 1/ Even/ 8 | ||||||
| LoRaWAN | Interval: 1 times a day | ||||||
| Screen always on | |||||||
| Handheld device compatible | |||||||
